Features
Allows other DTR radios on same group ID and channel to communicate.
Lithium ion battery
Gives extra-long battery life—up to 14.5 hours of operation per full charge.
Rugged, compact polycarbonate housing
Offers comfort, with rubber overmold.
Durable design
Meets military 810 C, D, E, and F specifications for shock, vibration, water, dust and temperature extremes.
Full-graphic backlit display
Uses contrast adjustment and backlight timer and provides battery gauge.
Caller ID
Stores recent call list—up to last 20 transmissions.
Unit-to-unit configuration
Simplifies cloning operation, with via optional cable.
Specification Sheet

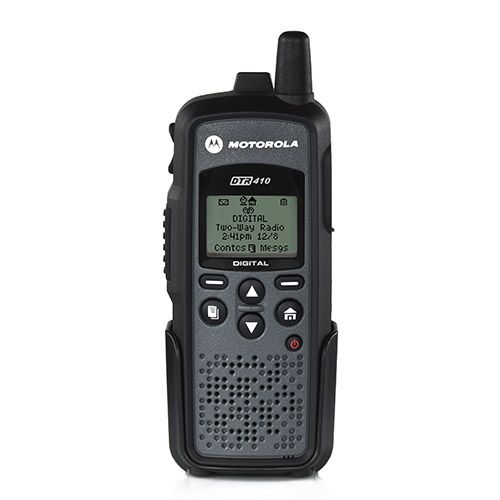

DTR410
Product specifications for the DTR410 digital on-site two-way radio
Performance Characteristics
-
Estimated battery life
Up to 14.5 hours
-
Coverage area
Up to 300,000 square feet (25 floors)
-
Frequency band
900 MHz ISM License Free
-
Power
1W
Physical Characteristics
-
Emergency button
None
-
Keypad
None
-
Display
Full
-
Dimensions H x W x D (with standard battery)
5.2 x 2.3 x 1.4 in. (132.3x 57.2 x 35.4 mm) H x W x D
-
Weight (with standard battery)
7.1 oz. (200.2 g)
Radio Features
-
Number of channels
Up to 5 contacts (Maximum 5 public groups)
-
Cloning
With cable
-
Front panel programmable
Yes
Technology
-
Digital technology
Yes
User Environment
-
FCC license-free
Yes
-
Mil spec
810 C, 810 D, 810 E, 810 F
Warranty
-
Standard warranty
2 years
-
Standard package

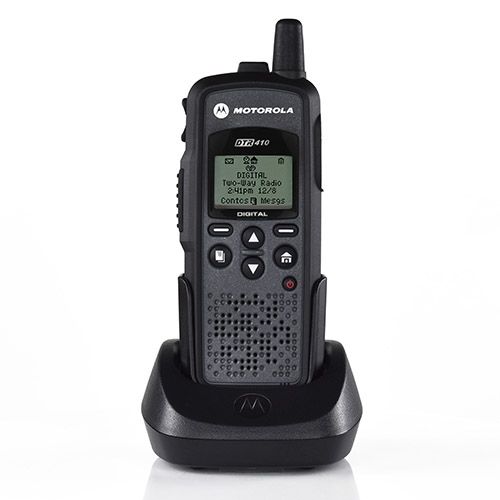

Standard capacity Li-Ion battery, drop in charging tray, 3-hr charger, swivel belt holster, tri-lingual user's guide (CD), quick reference cards
