Features
Connected

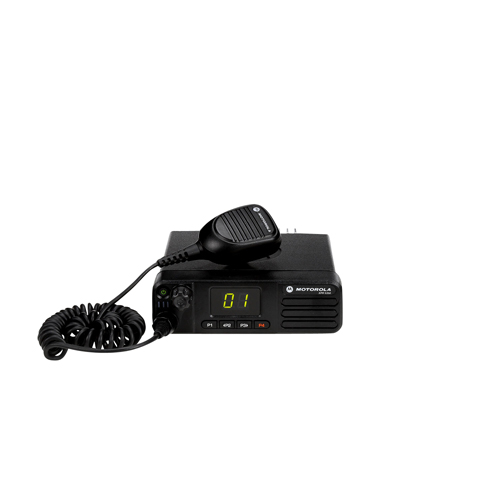

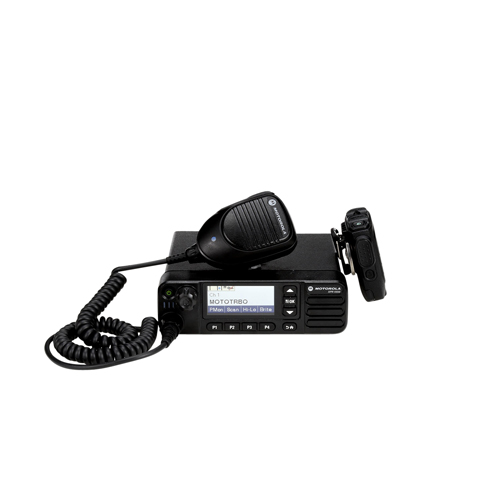

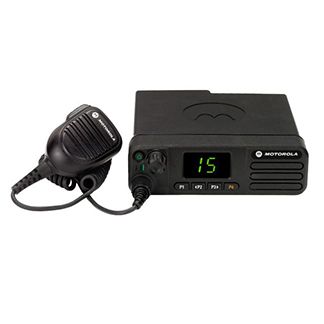

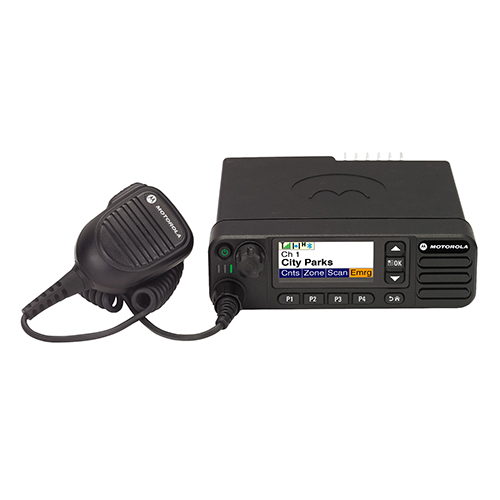

The XPR 5000e Series is a family of DMR-standard digital radios that delivers operations-critical voice and data communications. Bluetooth audio lets you talk without wires. Integrated Wi-Fi enables remote software updates, as well as voice connectivity via WAVE OnCloud when you are out of range of your MOTOTRBO system (service subscription required). Indoor and outdoor location-tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analog technology, you can keep your organization connected as it grows.Â
Productive

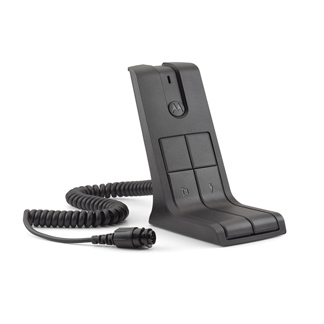

Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a high power audio amplifier, these radios deliver loud, clear speech, with background noise cancellation for better intelligibility. XPR 5000e Series radios are also ideal as a dispatch solution, with desktop microphones and a rugged, durable design for everyday use.
Safe
Safeguard your staff with responsive push-to-talk technology. The quick access buttons on XPR 5000e Series radios can summon help with one touch, using Transmit Interrupt to clear a channel when necessary. A range of safe driving accessories allows your workers to communicate hands-free and text-to-speech technology helps your drivers keep their eyes on the road.
Specifications
Performance Characteristics
-
Frequency band
VHF, UHF-1, UHF-2, 800 MHz, 900 MHz
-
Power levels
High Power Output:
VHF: 25-45 W
UHF Band 1: 25-40 W
UHF Band 2: 1-40 W
800: 10-35 W
900: 10-30 W
Low Power Output:
VHF: 1-25 W
UHF Band 1: 1-25 W -
Frequency range
VHF: 136-174 MHz
UHF Band 1: 403-470 MHz
UHF Band 2: 450-512 MHz
800/900: 806-825 MHz; 851-870 MHz; 896-902 MHz; 935-941 MHz
Physical Characteristics
-
Keypad
No
-
Emergency button
Optional
-
Display

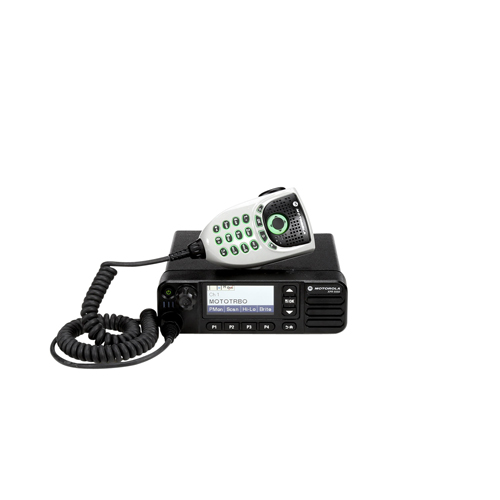

Numeric, LED indicators , Monochrome, Alphanumeric, Color, Day and night mode
-
Remote mountable control head
Yes
-
Dimensions H x W x D
2.1 x 6.9 x 8.1 in (53 x 175 x 206 mm)
-
Configurations
Dash Mount, Remote Mount Capable
-
Available option board
Yes
-
Weight
3.9 lb. (1.8 kg)
Radio Features
-
Bluetooth
Integrated Bluetooth audio, Integrated Bluetooth data
-
Voice announcement
Yes
-
Transmit interrupt
Yes
-
Intelligent audio
Yes
-
Channel spacing
12.5
-
Emergency signaling
Yes
-
GPS capable
Yes
-
Integrated voice and data
Yes
-
Lone worker
Yes
-
Memory channel
Yes
-
One-to-one calling
Yes
-
PC programmable
Yes
-
Public address mode
Yes
-
Scan
Priority, Nuisance channel delete, Talk group
-
Selective radio inhibit
Yes
-
Programmable buttons
Yes
-
Signal strength indicator
Yes
-
Signaling
MDC, Quik-Call II
-
Talkaround
Yes
-
Text messaging capable
Yes
-
X-pand voice compression and low level expansion
Yes
-
Time out timer
Yes
-
WAVE OnCloud Support
Yes (service subscription required)
Technology
-
System type
IP Site Connect, Conventional, Capacity Plus, Capacity Max, Connect Plus Trunking, Linked Capacity Plus
-
Digital technology
Yes
User Environment
-
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
-
IP standards
IP54
Warranty
-
Standard warranty
2 years
