Features
- Over-the-Air Programming
Motorola's POP25 solution allows subscriber radios to be programmed over the air via the ASTRO 25 systems while remaining in the field. Available over LTE-4G or LMR.
- Over-the-Air Rekeying
Allows subscriber radio to be rekeyed over the air via the ASTRO 25 system while remaining in the field. Available over LTE-4G or LMR. - Text Messaging
Offers a freeform or canned messaging solution so you can efficiently and discreetly send and receive messages. Available over LTE-4G or LMR. - Integrated GPS
Enables accountability and location tracking of an individual or vehicle, which can be sent to a map-based location application. Available over LTE-4G or LMR.
LTE Feature Operation
Provides LTE-4G feature-based technology to give users faster data speed over LTE-4G and simultaneous voice operation over the ASTRO 25 network. Features available are:
Encryption
FIPS 140-2 Level 3 certified hardware encryption provides tamperproof security to ensure the highest level of secure communications.
Dual-band Operation
The only compact, lightweight dual-band radio that delivers the convenience of two radios in one, while maintaining APCO TIA receiver specifications. Available only in 800MHz and VHF for LTE operation.
P25 Phase 2-TDMA
Twice the voice capacity, allowing additional users on the system without the need for additional frequencies or infrastructure.
Channel Capacity
Provides standard 1200 channels/talkgroups for model 1.5 and 3000 channels/talkgroup for 3.5.
Dual Microphones
Dual Mic noise suppression technology locates the talker and cancels out any background noise.
1 Watt Speaker
Custom designed 1 watt loudspeaker reproduces speech dynamics for superior intelligibility in most environments.
AMBE Vocoder
Equipped with the latest AMBE 2 digital voice vocoder.
Intelligent Lighting
Uses color to notify you of the radio mode, potential emergencies, or specific events. Color alerts provide information at a glance.
Voice Announcement
Audible, pre-recorded voice file provides a description of the selected channel or zone.
Extreme Audio Profile
Provides the latest noise reduction software for users that frequently encounter loud environments.
Mission Critical Wireless
Option available to connect quickly, securely and simply to certified Bluetooth devices.
Radio Profiles
Adjust audio levels, lighting and tones through user selected or automated options. Whether on surveillance or working in bright sunlight, you can customize settings as needed.
Universal PTT
Universal push-to-talk button with enhanced grooves is easy to find by touch.
Optimized T-grip
Innovative T-grip design gives you a secure grip and better control.
Full-size Keyboard
Simple to navigate and use.
Large Color Display
High-contrast color display is easy-to-read in all kinds of light.

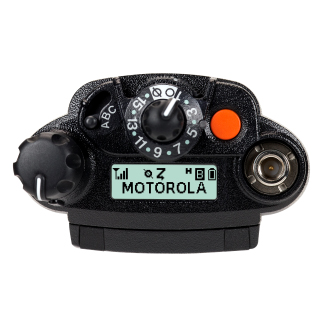

Top Display
The eight-character display presents zone/channel information in a seamless hands-off operation.
Expansion Slot
Includes an expansion slot that supports future option cards and data applications.
Specification Sheet
APX 7000L LTE Portable Radio Spec Sheet
With dual band capability to interoperate with other agencies, noise suppression technology, and a rugged and durable form factor, the APX 7000L LTE portable radio is the solution you need in the moments that matter most on a mission. While securing the mission you are in, the APX 7000L portable allows federal agents to achieve optimal data operations, such as updating radio software and rekeying of radios. LTE network technology allows agents to receive this information faster than LMR networks while simultaneously using voice operation. Data is no longer delayed. Radio communications have never been easier and provide secure, efficient, and innovative operations to ensure the mission is never compromised.
Performance Characteristics
-
Frequency range
136-174 MHz and
764-869 MH); LTE Range: 746-798 MHz -
Frequency band
VHF, 700 MHz, 800 MHz
-
Battery life (based on a 5 5 90 duty cycle)
8-10 hours
-
Battery life - extended (based on a 5 5 90 duty cycle)
10-12 hours
-
Encryption type Algorithms
AES, DES, DES-XL, DES-OFB, DVP-XL, DVI-XL, Advanced Digital Privacy (ADP)
-
Standard battery chemistry type
Lithium Ion
-
Channel spacing
12.5 kHz, 25 kHz
Physical Characteristics
-
Dimensions H x W x D (without standard battery)
6.29 in. (159.7mm) x 2.31 in. (58.6mm) x 1.34 in. (34mm)
-
Weight (without standard battery)
13.5 oz.
-
Weight (with standard battery)
19.8 oz.
-
Display
Full
-
Emergency button
Programmable
Radio Features
-
Advanced Software Features
Remote Monitor, Integrated APCO P25 Packet Data, Over the Air Programming (OTAP), Over the Air Rekeying (OTAR)
-
Bluetooth
Integrated Bluetooth audio, Integrated Bluetooth data
-
Number of channels
Model 1.5 - 1200, Model 3.5 - 3000
-
CPS (Customer Programming Software)
Yes
-
FLASHport memory
True
-
Noise reduction software
Yes
-
Time out timer
Yes
-
Cloning
With multi-unit charger (MUC)
-
Status calls
Yes
-
Voice announcement
Yes
-
Channel scan
Yes
-
Programmable buttons
Yes
-
Noise reduction software
Yes
Technology
-
System type
Conventional, SmartZone trunking, TDMA, Analog, Digital
User Environment
-
IP standards
IP67 and Delta-T
-
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
-
Water resistance
IP67 and Delta-T
-
Operating temperature
-30ºC / +60ºC
-
Storage temperature
-40ºC / +85ºC
Warranty
-
Standard package
Yes
-
Standard warranty
3 years, 5 years
