Product Highlights
- First purpose-built OnGo CBRS radio (CBRS 3.5 GHz network compatible)
- Simple management through the Nitro Cloud Portal
- High fidelity wideband audio
- Interoperates with existing networks*
- Up to 15 hours of battery life
- Wi-Fi hotspot (2.4 GHz) with CBRS backhaul, for up to two clients
- Wi-Fi client (2.4 GHz and 5 GHz)
- Compatible with most TLK 100, SL300 and SL3500e accessories
*Interoperation is exclusively available through a Nitro network.
General Specifications
Dimensions 131 mm H x 59 mm W x 22 mm D
Dimensions (with antenna) 169 mm H x 59 mm W x 22 mm D
Weight (with antenna) < 180g with battery
Battery 2500 mAh Li-Ion
Battery Life Up to 15 hrs
RF Banding LTE Band 48 (3.5 GHz) CAT 4
Audio Wideband (16K); SPL: 96 DBphon at 30 dm
Connectivity
Bluetooth 4.2 BR/EDR/LE
Bluetooth Profiles HFP, SPP and BLE GATT
Wi-Fi Client Band: 2.4 GHz, 5 GHz
Wi-Fi Hotspot Band: 2.4 GHz
Wi-Fi Standards 802.11 a/b/g/n
GNSS GPS/GLONASS/Galileo/BeiDou
Environmental
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Ruggedness IP54 protection against dust and water splashes
Durability Continues to run after multiple drops to concrete at 4 ft (121 cm)
MIL-STD-810G Method 516.7 Procedure IV
Hardware
Display Dot Matrix Display
Ports Micro USB
Single Pin Audio Interface (OPAI)
Buttons Volume Up/Down, Power, Channel Toggle, PTT, Side Button
Charging Contacts on side, Micro USB
SIM Customer Removable; 3FF size
Accessories

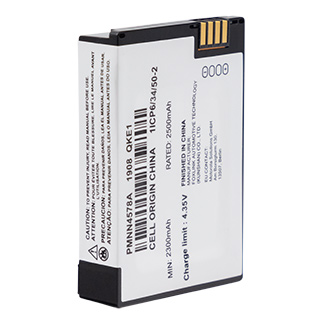

PMNN4578 2500 mAh Li-Ion Battery
PMLN7189 Swivel earpiece, In-Line Mic & PTT
PMLN7157 2-Wire with Translucent Tube, Black
PMLN7158 One-Wire Surveillance Earpiece, In-Line Mic & PTT
PMLN7159 Adjustable D-Style Earpiece, In-Line Mic & PTT
